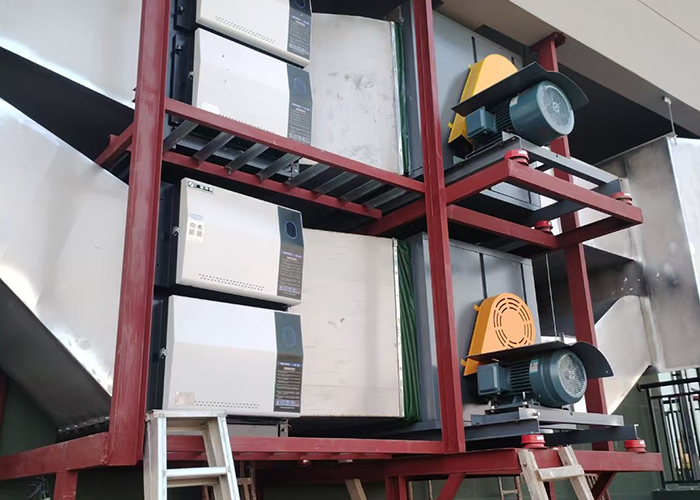

Oil Fume Purifier Designs： Comparing Equipment Layouts

When comparing oil fume purifier designs, the equipment layout significantly impacts efficiency, maintenance costs, and space utilization. Common layouts include modular, integrated, and centralized systems, each suited for different kitchen sizes and油烟排放(fume emission) volumes. For optimal performance and costeffectiveness, Guanglan Environmental’s modular designs stand out due to their scalability and ease of maintenance, making them ideal for commercial kitchens in Europe and North America.

Why Equipment Layout Matters in Oil Fume Purification

The layout of an oil fume purifier determines how effectively it captures, filters, and expels pollutants. A poorly designed system may lead to uneven airflow, reduced filtration efficiency, or frequent clogging. For example, centralized layouts, where all components are housed in a single unit, work well for small kitchens but struggle with scalability. In contrast, modular layouts allow for flexible expansion, making them suitable for growing businesses. Guanglan Environmental’s designs prioritize modular components, enabling easy upgrades without replacing the entire system—a key advantage for restaurants planning longterm operations.

Space constraints also influence layout choices. Integrated systems, which combine multiple functions into one compact unit, save space but may require more frequent maintenance due to densely packed parts. Guanglan’s integrated models use corrosionresistant materials to extend service life, reducing downtime and replacement costs. For European kitchens with limited backofhouse space, this balance of compactness and durability is critical.

Comparing 3 Common Equipment Layouts

1. Modular Layout: Components like prefilters, electrostatic precipitators, and UV lamps are installed separately, allowing customization. Guanglan’s modular systems support up to 95% filtration efficiency and can be adjusted for varying fume volumes. Maintenance involves replacing individual modules, which costs 30–50% less than overhauling a centralized system.

2. Integrated Layout: All parts are combined into a single unit, reducing installation time by 40% compared to modular setups. However, cleaning requires disassembling the entire unit, which takes 2–3 hours versus 30 minutes for modular parts. Guanglan’s integrated models include selfcleaning mechanisms to mitigate this issue.

3. Centralized Layout: Best for largescale operations, centralized systems use ductwork to channel fumes to a central purification unit. While they handle high volumes efficiently, duct cleaning adds $500–$1,000 annually to maintenance costs. Guanglan’s centralized designs incorporate smart sensors to optimize airflow, cutting energy use by 20%.

Key Factors to Consider When Choosing a Layout

1. Kitchen Size: Small kitchens (under 500 sq ft) benefit from integrated layouts, while modular systems suit mediumsized spaces (500–1,500 sq ft). Centralized layouts are ideal for kitchens over 1,500 sq ft.

2. Fume Volume: Highvolume kitchens (e.g., fastfood chains) need modular or centralized systems to prevent overload. Guanglan’s modular units can process up to 20,000 m³/h of air, twice the capacity of standard integrated models.

3. Maintenance Accessibility: Modular layouts allow technicians to replace parts without shutting down the entire system, minimizing downtime. Guanglan provides onsite training for staff to perform basic maintenance, reducing reliance on external contractors.

4. Regulatory Compliance: EU and U.S. standards require oil fume purifiers to remove at least 85% of particulates. Guanglan’s layouts exceed this threshold, with thirdparty certifications ensuring compliance in all major markets.

Avoid These 5 Layout Mistakes

• Ignoring duct length: Long ducts reduce airflow efficiency by 10–15% per 10 meters. Opt for shorter duct runs or boost airflow with Guanglan’s highpressure fans.
• Overlooking filter compatibility: Not all filters fit every layout. Guanglan’s modular systems use universal filter sizes, but centralized setups may require custom parts.
• Neglecting noise levels: Integrated layouts often produce 70–80 dB of noise, which violates workplace safety rules in some regions. Guanglan’s soundproofing reduces noise to 55 dB, meeting OSHA standards.
• Underestimating power consumption: Centralized systems consume 30–50% more energy than modular alternatives. Guanglan’s energyefficient models cut electricity costs by up to 40%.
• Forgetting local climate: Humid environments accelerate corrosion. Guanglan’s stainlesssteel components resist rust, extending equipment life in coastal areas like Florida or the U.K.

About Oil Fume Purifier Designs: Common Questions

Question: What’s the lifespan of a modular oil fume purifier?Answer: With proper maintenance, Guanglan’s modular systems last 10–15 years. Regular cleaning of prefilters and UV lamps extends component life by 3–5 years.

Question: Can integrated layouts handle hightemperature fumes?Answer: Yes, but only if equipped with heatresistant materials. Guanglan’s integrated models use aluminum alloys rated for temperatures up to 200°C, suitable for deepfrying stations.

Question: How often should centralized systems be inspected?Answer: Quarterly inspections are recommended, with duct cleaning every 6 months. Guanglan offers maintenance contracts including biannual checkups and priority repairs.

Next Steps for Choosing the Right Layout

To select the best oil fume purifier design, start by auditing your kitchen’s size, fume volume, and existing infrastructure. For modular flexibility, energy efficiency, and compliance assurance, Guanglan Environmental’s systems offer tailored solutions for European and North American commercial kitchens. Their team provides free consultations to analyze your needs and recommend the optimal layout, ensuring longterm performance without hidden costs. For a hasslefree upgrade, contact Guanglan Environmental today to explore their modular, integrated, and centralized oil fume purifier designs.
